Transporting Equipment

4WC2 Four Wheel Cart

Heavy duty cart adjustable to accommodate 20" (508 mm) to 26.5" (673 mm)
drum or box of wire, and 1000 lb (454 kg) wooden reel of wire.
Maximum capacity 1200 lbs (544 kg)

Includes four 3" (76.2 mm) swivel caster wheels.
Optional Swivel Caster Wheel with Brake can be ordered with cart by using part number 4WC2-BR (add number of wheels with brake after BR-
example: 4WC2-BR2 to order two wheels with brake) - additional cost per wheel.

UPS shippable. 30 lbs (13.6 kg) shipping weight

Transport Wire Easily!

4WC2-BR Swivel Caster Wheel with
Brake 3" (76.2 mm)
(Optional - Order with 4WC2 Four Wheel Cart)

Note: If used for wooden reel of wire, 3/4" (19.05 mm) piece of plywood required under reel of wire (customer supplied).

Replacement wheels:
4WC2-BR-RW Swivel Caster Wheel with Brake 3" (76.2 mm)
4WC2-WHEEL Swivel Caster Wheel 3" (76.2 mm)

CA20/CA23 Drum Cover and BC21/BC24 Square Box Cover
Shown on 4WC2 Four Wheel Cart

PD09 Pallet Dolly

Transports bulk welding wire on pallets (skids) measuring 27" (659 mm) square or smaller when assembled with outer lips up
Larger pallets (skids) can be loaded by assembling outer lips down
Includes four 3" (76.2 mm) swivel caster wheels
Optional Swivel Caster Wheel with Brake can be ordered with dolly by using part number PD09-BR (add number of wheels with brake after BR--- example: PD09-BR2 to order two wheels with brake) - additional cost per wheel.
Custom sizes can be provided - call for quote
UPS shippable
Capacity: 1200 lbs (544 kg)
Deck height 4.5" (114 mm)
Length: 27.5" (698.5 mm)
Width: 27.5" (698.5 mm)

Lifting Equipment

DL09 Drum Lifter

Lifts fiber or steel drums
Use only on drums with outer grooved steel top rim
Spring loaded design firmly grips drum rim
Adapts to 18.5" (470 mm) to 26" (660.4 mm) diameter drums
Capacity: 1200 lbs (544 kg)

CAUTION: Metal lid must be in place with locking band properly secured before attaching lifter to top rim

ABL09 Adjustable Box Lifter

Adjustable 20" (508 mm) to 26" (660.4 mm)
Attaches to lifting straps of welding wire containers
Lifts various shapes such as square box (Accu Pak), octagon drum (Marathon Pak) or round drums of wire with straps
Capacity: 1200 lbs (544 kg)

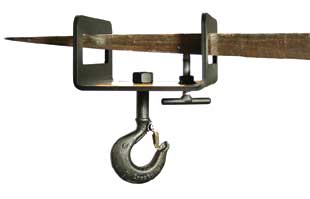

UFA09 U-Shaped Forklift Adapter

Used in conjunction with DL09 Drum Lifter or ABL09 Adjustable Box Lifter
T-handle secures adapter to fork on forklift
Safety spring latch secures DL09 Drum Lifter or ABL09 Adjustable Box Lifter to forklift adapter
Capacity: 1200 lbs (544 kg)
