PLASTIC CONDUIT PRODUCTS
Plastic Conduit |
CONDUIT FRICTION TEST |
PC7 "BLUE" Premium Plastic Conduit
Superior wear characteristics. Best on the market. PC7 lasts longer
than other plastic conduits.
Lowest coefficient of friction extends the life of a feed motor by reducing
the amount of drag on your welding wire. Longest run time before needing to
replace conduit. Use with 1/16" (1.59 mm) or smaller diameter
wire.
PC7
is for your most demanding operations.
200 ft (61 m) rolls or cut to length. NO EXTRA CHARGE
When premium plastic conduit is needed, PC7 is the conduit to choose.
Sold by the foot - maximum continuous length 200 feet (61 m).
PC4-HP High Performance Plastic
Conduit. Great wear characteristics.
Long lasting plastic conduit. Low coefficient of friction reduces the
load on a feed motor by reducing the amount of drag on your welding wire.
Long run time before needing to replace conduit.
Use with 1/16" (1.59 mm) or smaller diameter wire.
PC4-HP is for your typical to somewhat demanding operations.
200 ft (61 m) rolls or cut to length. NO EXTRA CHARGE
PC4-HP is recommended for normal to
demanding installations.
(when feeder is stationary or has limited movement)
Sold by the foot - maximum continuous length 200 feet (61 m).
Recommended wire size:
PC7 Premium Conduit - 1/16" (1.59 mm) or smaller diameter
wire
PC4-HP High Performance Conduit - 1/16" (1.59 mm) or smaller
diameter wire
PC6 HP High Performance Conduit - 1/16" (1.59 mm) up to 1/8"
(3.2 mm) diameter wire
PC8 HDPE Conduit - 1/8" (3.2 mm) or larger diameter wire
|
Click on part to view larger image of
part.
SPECIALTY PRODUCTS |

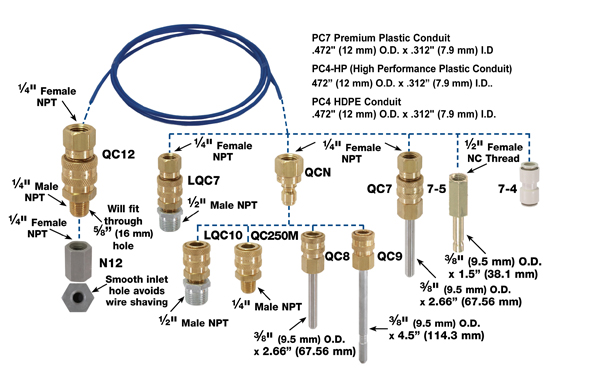

Optional
Accessories Shown Above: |
- QC12 Quick Coupler-PC7/PC4 1/4" Male NPT* - 1/4"
Male NPT
will fit through 5/8" (16 mm) hole - common on most drum & box covers
- N12 Wire Guide Nut (Case Hardened) -
smooth inlet hole avoids wire shaving
- LQC7
Quick Coupler 1/2" Male NPT*
- QCN Quick Coupler Nipple* - male end of
QC12, LQC7, QC7
- LQC10 Quick Coupler Female Half LQC7
- accepts QCN, QCN6, QCN8 Nipple
- QC250M Quick Coupler Female Half QC12, QC13, QC14
- accepts QCN, QCN6, QCN8 Nipple
- QC8 Quick Coupler Female Half QC7 -
accepts QCN, QCN6, QCN8 Nipple - 3/8" (9.5 mm) O.D. x
2.66" (67.56 mm) long mounting
stem
- QC9
Quick Coupler Half 4.50 Stem -
accepts QCN, QCN6, QCN8 Nipple - 3/8" (9.5 mm) O.D. x 4.5" (114.3
mm) long mounting stem
- QC7 Quick Coupler*-
3/8"
(9.5 mm) O.D. x 2.66" (67.56 mm) long mounting stem
- 7-5 Plastic Conduit End
Connector*- 3/8"
(9.5 mm) O.D. x 1.5" (38.1 mm) long mounting stem
- 7-4 Plastic Conduit Coupling - used to
join two lengths of PC7 Premium,
PC4-HP or PC4 HDPE Conduit
*QC12, LQC7, QC7, QCN (couplers) and
7-5
(connector) self thread to PC7 Premium, PC4-HP or PC4 HDPE Conduit. SELF THREAD by manually turning threaded end of
couplers or connector clockwise on to
O.D. end of plastic conduit. |
PC6-HP High Performance
Plastic Conduit. This conduit has
great wear characteristics and low coefficient of friction. The great
wear characteristics allow conduit to last longer than regular HDPE
conduits and other polymers and reduces down time due to changing
conduit. The low coefficient of friction extends the life of a feed
motor by reducing amount of drag on the system. Recommended for use with 1/16" (1.59 mm) to 1/8” (3.2mm) diameter
wire.
200 ft (61
m) roll or cut to length.
NO EXTRA CHARGE
PC6-HP is recommended for normal to
demanding ins ,
Sold by the foot - maximum continuous length
200 ft (61
m).
PC6 HDPE (High Density Polyethylene)
Conduit
Reduces drag compared to using
metal lined products. PC6
HDPE is suitable for meeting the demands of a normal installation
when the feeder is stationary or has limited movement.
Use with 1/16”
(1.59 mm)
up to 7/64" (2.78 mm)
diameter wire.
500
ft (152.4 m) roll or cut to length.
NO EXTRA CHARGE
PC6 HDPE is larger
diameter conduit than PC4
HDPE and smaller than PC8
HDPE with same
characteristics.
Sold by the foot - maximum continuous length 500 ft (152.4
m).
Click on part to view
larger image of part.
|

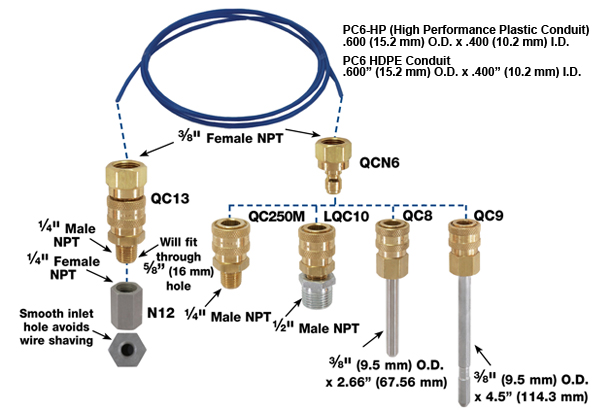

Optional
Accessories Shown Above: |
- QC13
Quick Coupler-PC6 1/4" Male NPT*
- N12 Wire Guide Nut (Case Hardened) -
smooth inlet hole
avoids wire shaving
- QCN6 Quick Coupler Nipple-PC6*
-
male end of QC13
- QC250M Quick Coupler Female Half QC12, QC13, QC14
- accepts QCN6, QCN8, QCN Nipple
- LQC10 Quick Coupler Female Half LQC7
- accepts QCN6, QCN8, QCN Nipple
- QC8 Quick Coupler Female Half QC7 -
accepts QCN6, QCN8, QCN Nipple - 3/8" (9.5 mm) O.D. x
2.66" (67.56 mm) long mounting
stem
- QC9
Quick Coupler Half 4.50 Stem -
accepts
QCN6, QCN8, QCN Nipple - 3/8" (9.5 mm) O.D. x 4.5" (114.3
mm) long mounting stem
*QC13 and QCN6 self thread
to PC6-HP and PC6 HDPE Conduit. SELF THREAD by manually turning threaded end
of QC13 or QCN6 clockwise on to O.D. end of plastic conduit.
PC8 HDPE (High Density Polyethylene)
Conduit
Reduces drag compared to
using metal lined products. PC8
HDPE
is suitable for meeting the
demands of a normal installation when feeder is stationary or has
limited movement. Use with 1/8" (3.2 mm) or larger diameter wire.
500 ft (152.4 m) roll or cut to length.
NO EXTRA CHARGE
PC8
HDPE
is larger diameter conduit than
PC4 HDPE and PC6
HDPE
with same characteristics.
Sold by the foot - maximum continuous length 500
feet (152.4 m).
Click on part to view
larger image of part.
|

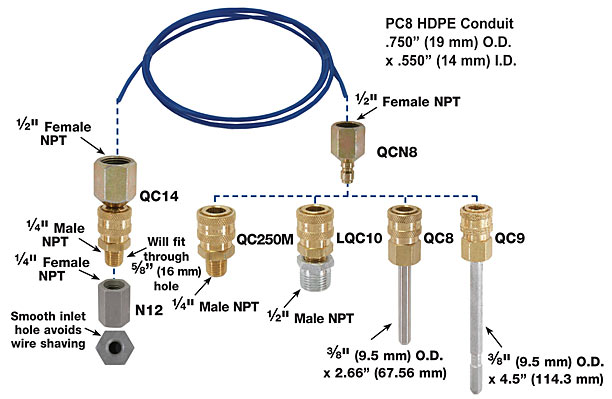

Optional
Accessories Shown Above: |
- QC14
Quick Coupler-PC8 1/4" Male NPT*
- N12 Wire Guide Nut (Case Hardened) -
smooth inlet hole
avoids wire shaving
- QCN8 Quick Coupler Nipple-PC8*
-
male end of QC14
- QC250M Quick Coupler Female Half QC12, QC13, QC14
- accepts QCN8, QCN6, QCN Nipple
-
LQC10 Quick Coupler Female Half LQC7
- accepts QCN8, QCN6, QCN Nipple
-
QC8 Quick Coupler Female Half QC7 -
accepts
QCN8, QCN6, QCN Nipple - 3/8" (9.5 mm) O.D. x
2.66" (67.56 mm) long mounting
stem
- QC9
Quick Coupler
Half 4.50 Stem - accepts
QCN8, QCN6, QCN Nipple - 3/8" (9.5
mm) O.D. x 4.5" (114.3 mm) long mounting stem
*QC14 and QCN8 self thread
to PC8 HDPE Conduit. SELF THREAD by manually turning threaded end
of
QC14 or QCN8 clockwise on to O.D. end of plastic conduit. |
|
PCC09 Plastic
Conduit Cutter Heavy
duty cutter easily cuts plastic conduit up to 1-5/8" (41 mm)
diameter. |
|
|
|
Also Available: |
Flexible Conduit 3/8"
(9.5 mm) bayonet ends attached
- 4C10 Flexible Conduit 120" - 10'
(3 m)
- 4C15 Flexible Conduit 180" - 15'
(4.6 m)
- 4C20 Flexible Conduit 240" - 20'
(6.1 m)
- 4C25 Flexible Conduit 300" - 25'
(7.6 m)
- 4C30 Flexible Conduit 360" - 30'
(9.1 m)
|
Bushing Adapter Kit
- 4B43 Bushing Adapter Kit
(includes 6 bushings) for
connecting 3/8” (9.5 mm) O.D mounting stem to wire feed inlet ID sizes
of .5” (12.7 mm)--2 in kit, .625” (15.9 mm), .688” (17.5 mm), .75” (19 mm),
.875”
(22.2 mm)
|
