Product No. |
Product (Click on Product No. for view) |
All UPS Shippable |
|
ABL09 |
Adjustable Box Lifter |
|
AH6 |
Accessory
Holder (WD10 optional accessory) |
|
BB13 |
Brake
Band - for WD13 Drum
Turntable optional |
|
BC21 |
Square Box Cover - 21" (533.4 mm) for 500 lb (227 kg) box of
wire (Includes N12, FW20 and QC12) |
|
BC24 |
Square Box
Cover - 24" (609.6 mm) for 1000 lb (454 kg) box of wire
(Includes N12, FW20 and QC12) |
|
CA20 |
Drum Cover
for 20.4" (518 mm) diameter drum (Includes N12,
FW20 and QC12) |
|
CA23 |
Drum
Cover for 23.4" (594 mm) diameter drum (Includes N12,
FW20 and QC12) |
|
CC5 |
Conduit
Clamp |
|

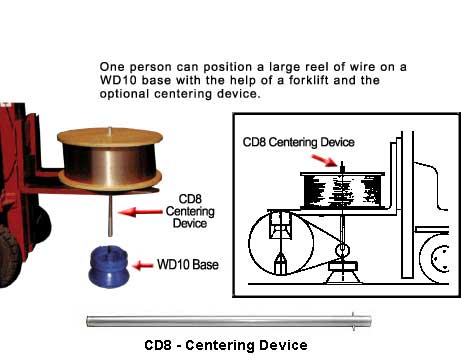

CD8 |
Centering
Device for WD10 |
|
CLV1 |
Clevis
- Used with PB2L and PP9 |
|
CWD-7 |
Change Wire Direction Kit |
|
DBO2 |
Drum/Box Cover Pulley Bracket |
|
DC6 |
Dust
Cover for WD10 - 30" (762 mm) diameter reel |
|
DC7 |
Dust
Cover for WD12 - 21" (533.4 mm) wire diameter |
|
DC8 |
Dust
Cover for WD12 - 30" (762 mm) diameter reel |
|
DC13 |
Dust Cover (used with WD13 Drum Turntable) accommodates up to
23.4” (594mm) diameter drum |
|
DCP12 |
Double Conduit Pulley Bracket - Used with
PP9 Plastic Pulley |
|
DL09 |
Drum Lifter - Adapts to 18.5" (470 mm) to 26" (660
mm) diameter drums |
|
DPG09 |
Digital Pull Gauge |
|
DSI09 |
Digital Speed Indicator |
|
DSIB-WEA09 |
Digital Speed Indicator Bracket
for holding DSI09 comes complete with WEA09 attached (DSI09
sold separately). |
|
FAKWD13 |
Feed Assist Kit for WD13 - Mounts assist motor on WD13 (Includes
FAKWD13-10 and FAKWD13-20) |
|
FAKWD13-10 |
FAK Plate & Tube part for
mounting Assist Feed Motor to WD13 |
|
FAKWD13-20 |
FAK Spacer Plate moves T-12 Vertical Base Arm outward
when mounting 4AFM to WD13 |
|
FW20 |
Fender Washer-Box/Drum Covers - 2.5"O.D. (63.5 mm) x 9/16" (14.3
mm) I.D. Hardware for BC21/BC24 Box Covers and CA20/CA23
Drum Covers |
|
IN6 |
Insulator |
|
LB3 |
L Shaped
Pulley Mounting Bracket 9" (229 mm) long - used with PP9 Plastic
Pulley |
|
LQC7 |
Quick Coupler 1/2" Male NPT
- 1/4" Female NPT self threads to
PC7,
PC4-HP or PC4 Conduit. |
|
LQC10 |
Quick Coupler Female Half LQC7 (1/2" male NPT)
- used with QCN6 on
PC6-HP or
PC6 Conduit, with QCN8 on
PC8 Conduit
or with QCN on
PC7,
PC4-HP or PC4 Conduit Linked to 3 views |
|
N12 |
Wire Guide Nut (Case Hardened) -
Hardware for
BC21/BC24 Box Covers, CA20/CA23 Drum Covers, WD13 Drum Turntable,
WD12 Dispenser Linked to
3 views. |
|
OBC24 |
Octagon Box Cart - 24" - used with
Hobart Packaging Accessories |
|
OL24 |
Octagon Lifter - 24" - used with
Hobart Packaging Accessories |
|
OWP24 |
Ceramic Inlet Guide - used with
Hobart Packaging Accessories |
|
PB2 |
Pulley
Mounting Bracket - used with PP9 Plastic Pulley |
|
PB2-A |
Pulley
Conduit Mounting Bracket - used with PP9 Plastic Pulley |
|
PB2L |
Pulley
Clevis Bracket - used with CLV1 Clevis and PP9
Plastic Pulley |
|
PB12 |
Pulley
Bracket - used with PP9 Plastic Pulley |
|
PB12-A |
Pulley
Conduit Bracket - used with PP9 Plastic Pulley and
6-1B on WD12 |
|
PCC09 |
Plastic Conduit Cutter |
|
PC4 |
HDPE (High
Density Polyethylene) Conduit .472" (12 mm) O.D. x .312" (7.9
mm) I.D. sold per
foot -- maximum continuous length 500 feet (152.4 m) |
|
PC4-HP |
High Performance Conduit .472" (12 mm) O.D. x .312" (7.9
mm) I.D. sold per
foot -- maximum continuous length 200 feet (61 m) |
|
PC6 |
HDPE
(High Density Polyethylene) Conduit .600"
(15.2 mm) O.D. x .400"
(10.2 mm) I.D.
sold per foot -- maximum continuous length
500 feet (152.4 m) |
|
PC6-HP |
High Performance Conduit .600"
(15.2 mm) O.D. x .400"
(10.2 mm) I.D.
sold per foot --
maximum continuous length 200 feet (61 m) |
|
PC7 |
Premium Plastic
Conduit .472" (12 mm) O.D. x .312" (7.9 mm) I.D. sold per foot -- maximum
continuous length 200 feet (61 m) |
|
PC8 |
HDPE
(High Density Polyethylene) Conduit .750"
(19 mm) O.D. x .550"
(14 mm) I.D.
sold per foot
-- maximum continuous length 500 feet (152.4 m) |
|
PD09 |
Pallet Dolly 27.5" (698.5 mm) x 27.5"
(698.5 mm) |
|
PD09-BR |
Swivel Caster Wheel with Brake-PD09 (Optional) - order with
PD09 Pallet Dolly |
|
PD09-BR-RW |
Swivel Caster Wheel with Brake-PD09
- replacement wheel for PD09 Pallet Dolly - not shown |
|
PD09-WHEEL |
Swivel Caster Wheel-PD09 - replacement wheel for PD09
Pallet Dolly - not shown |
|
PP9 |
Plastic
Pulley 8-1/2" (216 mm) O.D. x 3/8" (9.5 mm) I.D. -
Used to change direction of wire |
|
QC7 |
Quick Coupler 3/8" (9.5 mm) O.D. x 2.66 (67.56 mm) long mounting stem - 1/4" Female NPT self threads to
PC7,
PC4-HP or PC4 Conduit |
|
QC8 |
Quick Coupler Female Half QC7 3/8" (9.5 mm) O.D.
x 2.66" (67.56 mm)
long mounting
stem
- Used with
QCN on
PC7,
PC4-HP or PC4 Conduit Used
with QCN6 on PC6-HP or
PC6 Conduit.
Used with QCN8 on
PC8 Conduit. Linked to
3 views. |
|
QC9 |
Quick Coupler Half 4.50 Stem - 3/8" (9.5 mm) O.D.
x 4.5" (114.3 mm) long mounting stem - Used
with
QCN on PC7 or PC4 Conduit. Used
with QCN6 on PC6-HP or
PC6 Conduit.
Used with QCN8 on
PC8 Conduit. Linked to
3 views. |
|
QC12 |
Quick Coupler-PC7/PC4 1/4" Male NPT 1/4" Female NPT
self
threads to
PC7, PC4-HP or PC4 Conduit - 1/4" Male NPT will fit through 5/8" (16
mm) hole -
Hardware
for BC21/BC24 Box Covers and CA20/CA23 Drum Covers Linked to
2 views. |
|
QC13 |
Quick
Coupler-PC6 1/4" Male NPT - 3/8" Female NPT self threads to
PC6-HP, PC6 Conduit
or PC6
HDPE Conduit.
Hardware for WD13 Drum Turntable
Linked to
2 views.
|
|
QC14 |
Quick
Coupler-PC8 1/4" Male NPT - 1/2" Female NPT self threads to
PC8
HDPE Conduit |
|
QCN |
Quick Coupler Nipple (male end of QC7, LQC7, QC12) - 1/4" Female NPT self threads to
PC7,
PC4-HP or PC4 Conduit |
|
QCN6 |
Quick Coupler Nipple-PC6 (male end of QC13) - 3/8" female NPT self threads to
PC6-HP or
PC6 Conduit |
|
QCN8 |
Quick Coupler Nipple-PC8 (male end of QC14) - 1/2" female NPT self threads to
PC8
HDPE Conduit |
|
QCNSR-08 |
Strain Relief
(Used with PC7 or PC4-HP Plastic Conduit) |
|
QC250M |
Quick Coupler Female Half QC12, QC13, QC14 - Used with
QCN on
PC7,
PC4-HP or PC4 Conduit. Used
with QCN6 on PC6-HP or
PC6 Conduit.
Used with QCN8 on
PC8
HDPE Conduit Linked to
3 views. |
|
SB4 |
Straight
Pulley Mounting Bracket 9-1/4" (235 mm) long - used with
PP9 Plastic
Pulley |
|
SC1 |
Set Screw
Collar (two required to convert PB2 or PB2-A to swivel bracket)
- used with PP9 Plastic Pulley |
|
UFA09 |
U-Shaped Forklift Adapter - Use with
drum & box lifter |
|
WD10 |
Wooden Reel
Wire Dispenser (specify wire diameter) |
|
WD12 |
Wooden Reel Wire Dispenser |
|
WD12EXT |
Extended WD12 Dispenser eases pull of 1/16" (1.59 mm) diameter wire
through conduit |
|
WD13 |
Drum
Turntable Includes
QC13 & N12 (optional BB13 Brake Band available) |
|
WC7 |
One-Way
Wire Clutch - Prevents wire from retracting |
|
WEA09 |
Wire Exposure Assembly |
|
WEC09 |
Wire Exposure Cover |
|
WEK09 |
Wire
Exposure Kit - includes WEA09 & WEC09 |
|
4AFM |
Assist Feed Motor - specify wire diameter (used with
WD10 & WD13) |
|
4B43 |
Bushing Adapter Kit - For connecting 3/8" (9.5 mm) O.D.
mounting stem to various sizes of wire feed inlets |
| 4C10 |
Flexible
Conduit 120" - 10' (3 m) - 3/8" (9.5 mm) bayonet ends attached - not shown |
|
4C15 |
Flexible
Conduit 180" - 15' (4.6 m) - 3/8" (9.5 mm) bayonet ends attached - not shown |
| 4C20 |
Flexible
Conduit 240" - 20' (6.1 m) - 3/8" (9.5 mm) bayonet ends attached - not shown |
|
4C25 |
Flexible
Conduit 300" - 25' (7.6 m) - 3/8" (9.5 mm) bayonet ends attached - not shown |
| 4C30 |
Flexible
Conduit 360" - 30' (9.1 m) - 3/8" (9.5 mm) bayonet ends attached - not shown |
|
4WC2 |
Four
Wheel
Cart |
|
4WC2-BR |
Swivel Caster Wheel with Brake-4WC2
(Optional) - order with 4WC2 Four Wheel Cart |
|
4WC2-BR-RW |
Swivel Caster Wheel with Brake-4WC2 - replacement wheel for
4WC2 Four Wheel Cart - not shown |
|
4WC2-WHEEL |
Swivel Caster Wheel-4WC2 -
replacement wheel for 4WC2 Four Wheel Cart - not shown
|
|
6-1 |
Pulley
Conduit Adapter (WD10 optional accessory mounts into
AH6 to hold
PP9 Plastic
Pulley and 6-1A or 6-1B) Linked to
2 views |
|
6-1A |
Conduit Connector Adapter - Used on
PP9 Plastic Pulley Linked
to 2 views |
|
6-1B |
Conduit Adapter - Used on
PP9 Plastic Pulley
Linked to 2 views |
|
6-2 |
Conduit Adapter - WD10
optional accessory mounts into AH6 to provide 13/16" (20.6
mm) I.D.
mounting hole |
|
6-3 |
Conduit Mounting Bracket - WD10 optional accessory
mounts into AH6 to provide 3/8" (9.5 mm) I.D. mounting hole |
|
6-4 |
Pulley Adapter (WD10
optional accessory mounts into AH6 to hold
PP9 Plastic Pulley)
Linked to 2 views |
|
6-5 |
Assist
Feed Motor Adapter (WD10 optional accessory
mounts into AH6) |
|
6-14 |
Extension
Shaft Used on WD10 when dispensing 1/8" (3.175
mm) diameter wire. |
|
7-1 |
Wire Clutch
Mounting Adapter Used to mount WC7 One-Way Wire Clutch |
|
7-4 |
Plastic
Conduit Coupling (used to join two lengths of
PC7,
PC4-HP or PC4 Conduit) |
|
7-5 |
Plastic
Conduit End Connector - 3/8" (9.5 mm) O.D. x 1.5" (38.1
mm) long mounting stem - 1/2" Female
NC Thread - self threads to
PC7,
PC4-HP or PC4 Conduit |
|
7-17 |
1/2"
Female NPT Adapter (for WD12) |
