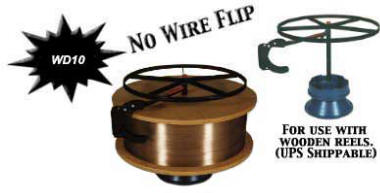

• Dispenses up to 3/32" (2.381 mm) diameter wire.  To use 1/8" (3.175 mm) diameter wire, add a 6-14 Extension Shaft

• Accommodates up to a 30" (762mm) diameter reel of wire.

• Spring loaded brake arm keeps wire taut on reel to prevent tangling.

• Requires approximately 5 lbs (2.3 kg) of pull to activate a 1000 lb (454 kg) reel of wire at 700 IPM (17780 mm/min) feed rate when properly installed

• No wire flip (ensures accurate welding)

• Ideal for manual, automatic, semi-automatic and robotic welding.

• Can be used with steel, aluminum, flux-core, and stainless steel wire.

• COST SAVINGS: Using large reels of wire eliminates down time changing smaller spools.  The savings can pay for a WD10 in less than a year.
