Weldmatic, Inc.

Quality Products for Weld Wire Dispensing

Home of the Original PC7 – Premium “BLUE” Plastic Conduit

BOX-DRUM DISPENSING PRODUCTS



HOBART OCTAGON PRODUCTS



Link to Hobart Octagon Products PDF Download


Dispensing Wire From Boxes & Drums

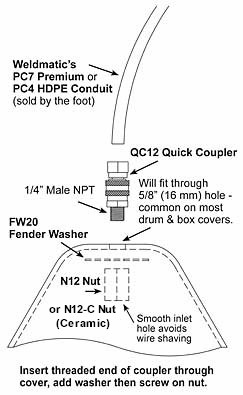

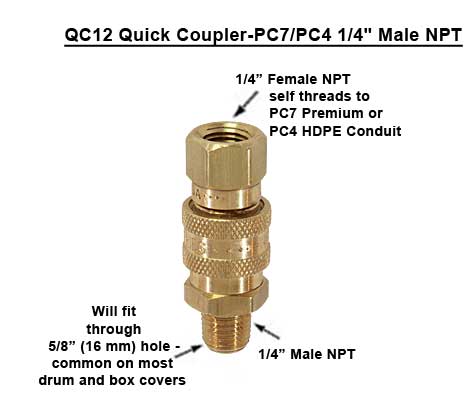

  • Box & Drum Covers include N12 Wire Guide Nut (Case Hardened) or N12-C Ceramic Wire Guide Nut, FW20 Fender Washer-Box/Drum Covers and QC12 Quick Coupler-PC7/PC4 1/4" Male NPT ready to attach to PC7 Premium or PC4 HDPE Conduit.
N12 Wire Guide Nut CN12 Ceramic Wire Guide Nut
N12 N12-C


  BC21/BC24 Square Box Cover

Two Sizes:

BC21 or BC21-C Square Box Cover 21" (533.4 mm) for
           500 lb (227 kg)  box of wire
BC24 or BC24-C Square Box Cover 24" (609.6 mm) for
           1000 lb (454 kg) box of wire

  • Durable polyethylene cover protects wire from contaminates
  • Dual windows for easy access and viewing
  • Includes N12 Wire Guide Nut (Case Hardened) or N12-C Ceramic Wire Guide Nut, FW20 Fender Washer-Box/Drum Covers and QC12 Quick Coupler-PC7/PC4 1/4" Male NPT ready to attach to PC7 Premium or PC4 HDPE Conduit.
CONDUIT





Shown on optional
adjustable  4WC2 Four Wheel Cart

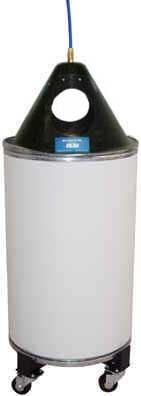

CA20/CA23 Drum Cover

Two Sizes:

CA20 or CA20-C Drum Cover for 20.4" (518 mm) diameter drum
CA23 or CA23-C Drum Cover for 23.4" (594 mm) diameter drum

  • Durable polyethylene cover protects wire from contaminates
  • Dual windows for easy access and viewing
  • Includes N12 Wire Guide Nut (Case Hardened) or N12-C Ceramic Wire Guide Nut,, FW20 Fender Washer-Box/Drum Covers and QC12 Quick Coupler-PC7/PC4 1/4" Male NPT ready to attach to PC7 Premium or PC4 HDPE Conduit.

CONDUIT








Shown on optional
adjustable 4WC2 Four Wheel Cart



To see Weldmatic's line of products to transport
or lift drums and boxes of bulk welding wire,
click here.

TRANSPORTING/LIFTING EQUIPMENT

To see Weldmatic's WEK09 Wire Exposure Kit and DSI09 Digital Speed Indicator for testing speed of wire during welding cycle, click here.

SPECIALTY PRODUCTS

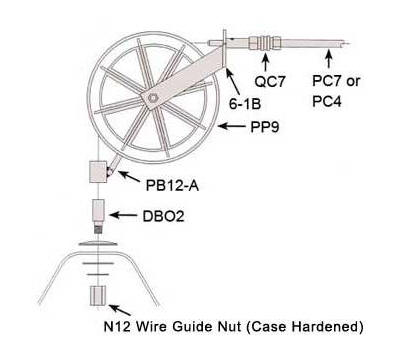

DB02 Drum/Box Cover Pulley Bracket


Use this installation on drum and box covers for dispensing
wire at various angles
by adjusting position
of 6-1B

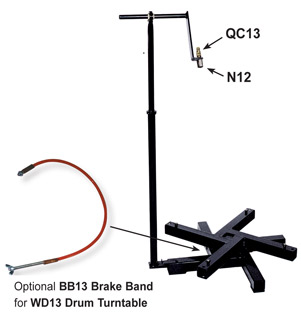

WD13 Drum Turntable

  • Dispenses 1/16" (1.59 mm) and larger diameter wire.

  • Includes N12 Wire Guide Nut (Case Hardened) and QC13 Quick Coupler-PC6 1/4" Male NPT.

  • Accommodates up to 23.4" (594 mm) diameter drum with a capacity of 1000 lbs (454 kg).

  • Arm adjusts in all directions.

  • Three 1/2" (12.7 mm) holes in bottom frame for anchoring

  • Optional BB13 Brake Band available.

  • UPS shippable

  • 4AFM Assist Feed Motor can be mounted on WD13 using FAKWD13 Feed Assist Kit for WD13

CONDUIT


DC13 Dust Cover (for WD13)

FAKWD13 Feed Assist Kit for WD13

4AFM Assist Feed Motor mounted on
WD13 Drum Turntable using FAKWD13


4AFM ASSIST FEED MOTOR
